SCARA

Compact structure, High speed, High position repeatability, Small & Agile, Drip-proof and Dust-proof, lightweight body
Applicable industries: Computer, Communication & Consumer Electronics, Pharmaceutical manufacturing, Food processing, Machining…

Reach
400-1000mm

Payload
3-20kg

Ingress Protection
up to IP54

Request a quotation or consult
more technical questions

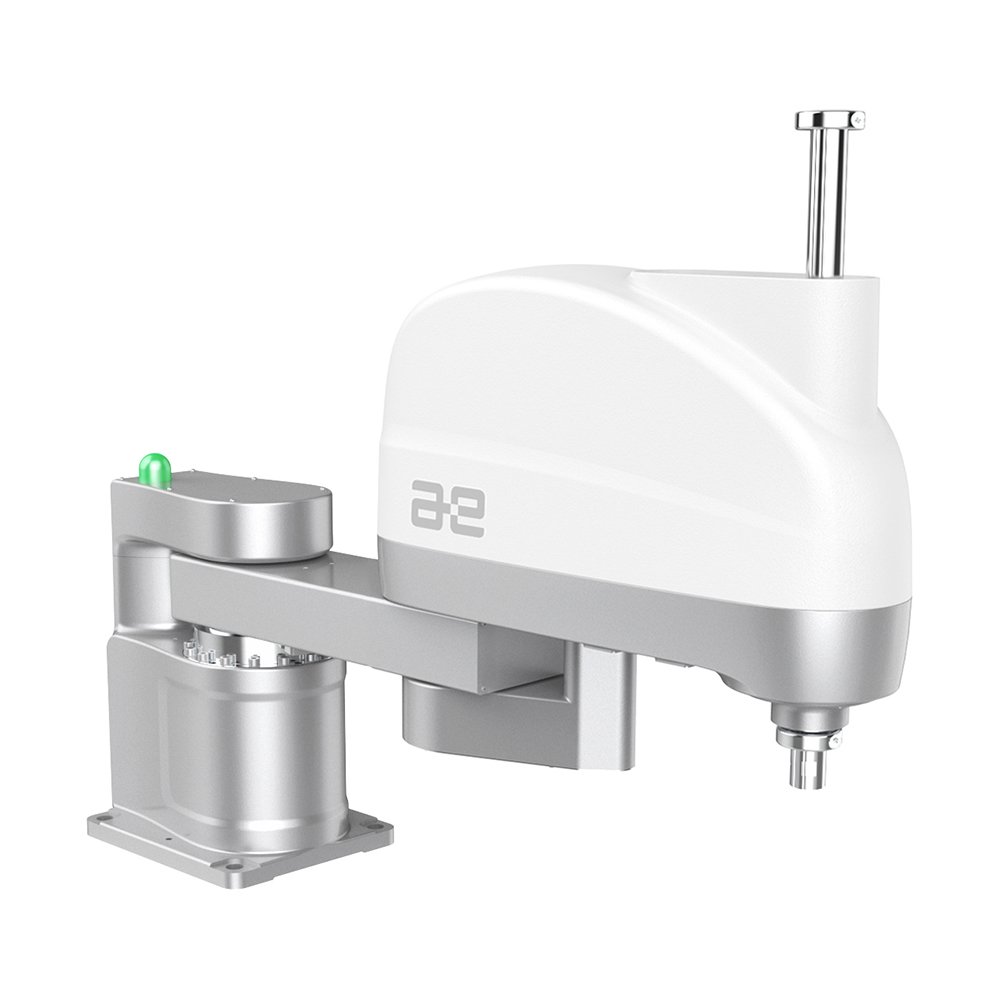

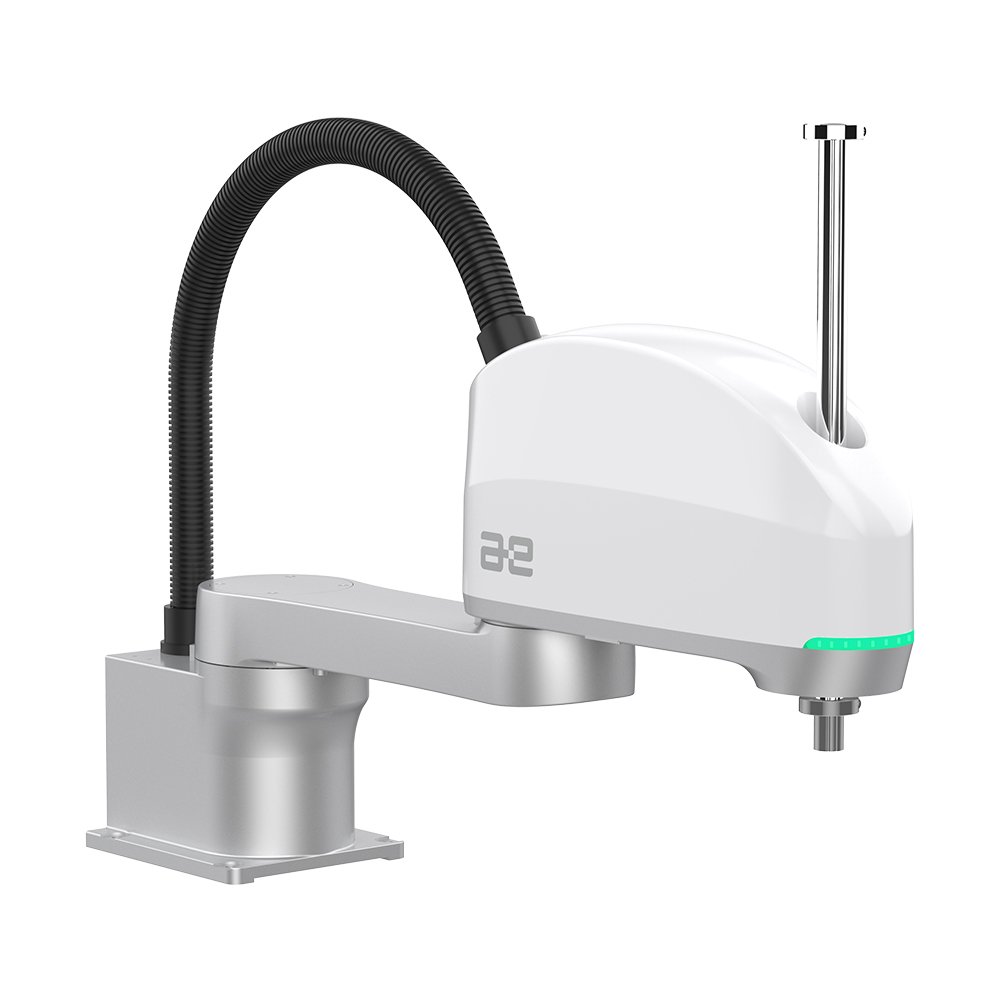

Type	more>> AIR3SC-400	more>> AIR6SC-600	more>> AIR6SC-750	more>> AIR12SC-600	more>> AIR12SC-700	more>> AIR12SC-820
Reach	400mm	600mm	750mm	600mm	700mm	825mm
Payload	3kg	6kg	6kg	12kg	12kg	12kg
Ingress Protection	IP20	IP20	IP20	IP30/IP54	IP30/IP54	IP30/IP54
Axes	4	4	4	4	4	4
Mounting	Floor	Floor	Floor	Floor/ceiling	Floor/ceiling	Floor/ceiling
PDF Download	AIR3SC-400.pdf	AIR6SC-600.pdf	AIR6SC-750.pdf	AIR12SC-600.pdf	AIR12SC-700.pdf	AIR12SC-820.pdf

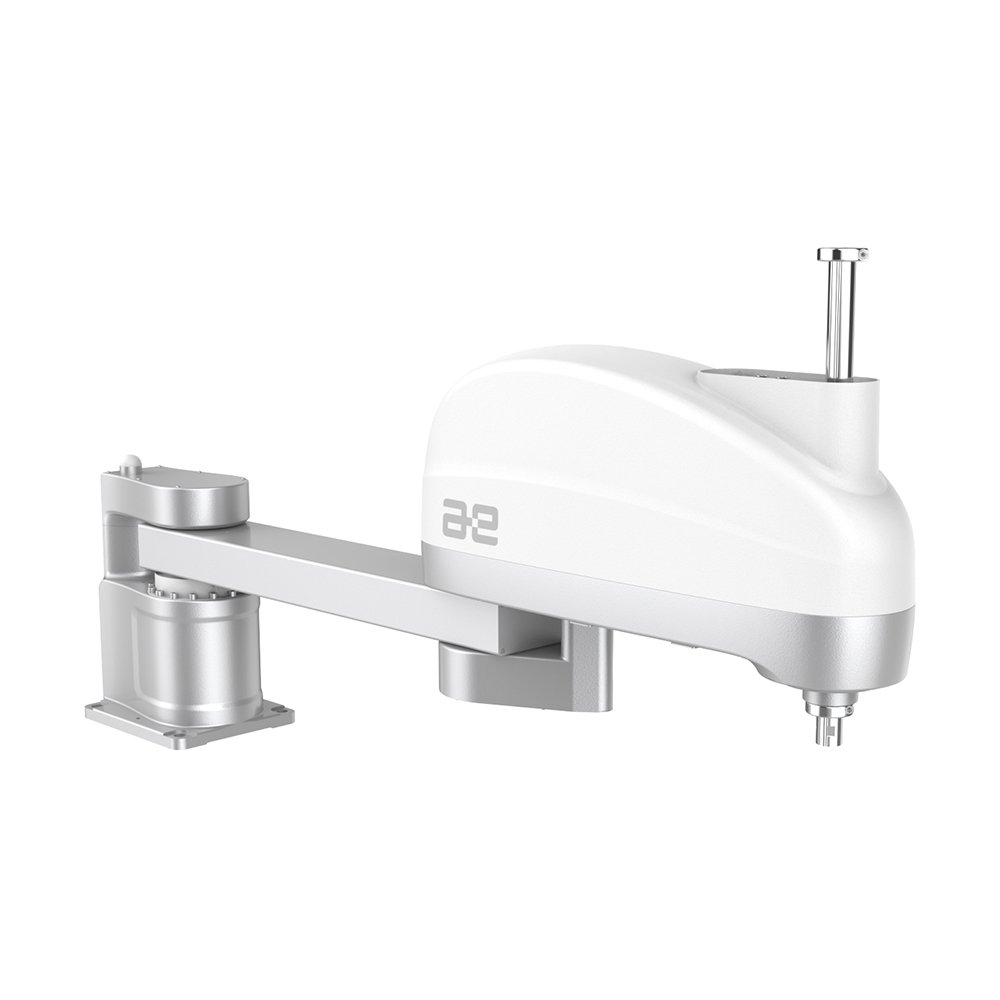

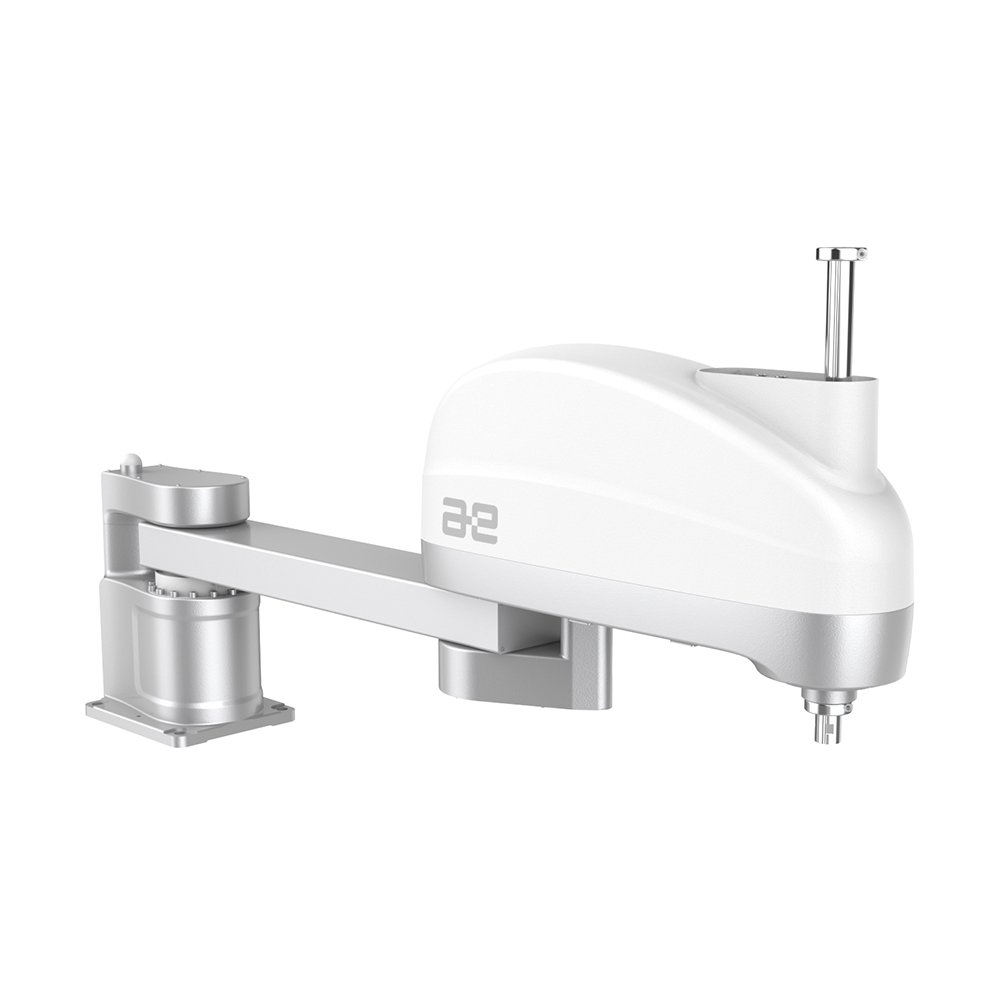

Type	more>> AIR12SC-1000	more>> AIR20SC-820	more>> AIR20SC-1000
Reach	1000mm	825mm	1000mm
Payload	12kg	20kg	20kg
Ingress Protection	IP30/IP54	IP30/IP54	IP30/IP54
Axes	4	4	4
Mounting	Floor/ceiling	Floor/ceiling	Floor/ceiling
PDF Download	AIR12SC-1000.pdf	AIR20SC-820.pdf	AIR20SC-1000.pdf
