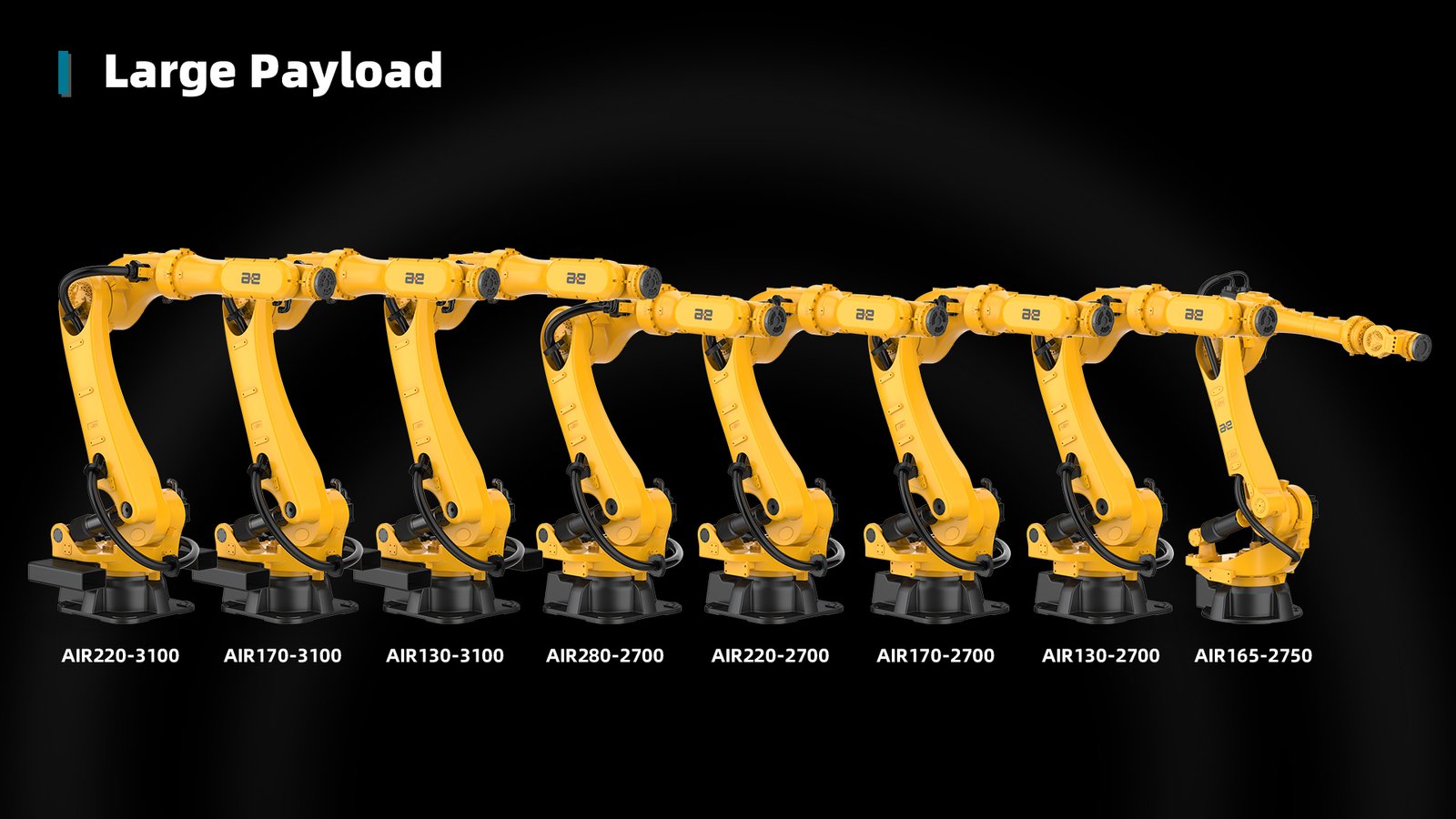

Large Payload
High inertia, High rigidity, High stability, slight torque fluctuation
Applicable industries: Photovoltaic, Lithium battery, Food processing, Machining…
Applicable industries: Photovoltaic, Lithium battery, Food processing, Machining…
Reach
2700-3100mm
2700-3100mm
Payload
130-280kg
130-280kg
Ingress Protection
Up to IP65
Up to IP65
Request a quotation or consult
more technical questions
| Type |
more>>  AIR130-2700 |
more>>  AIR130-3100 |

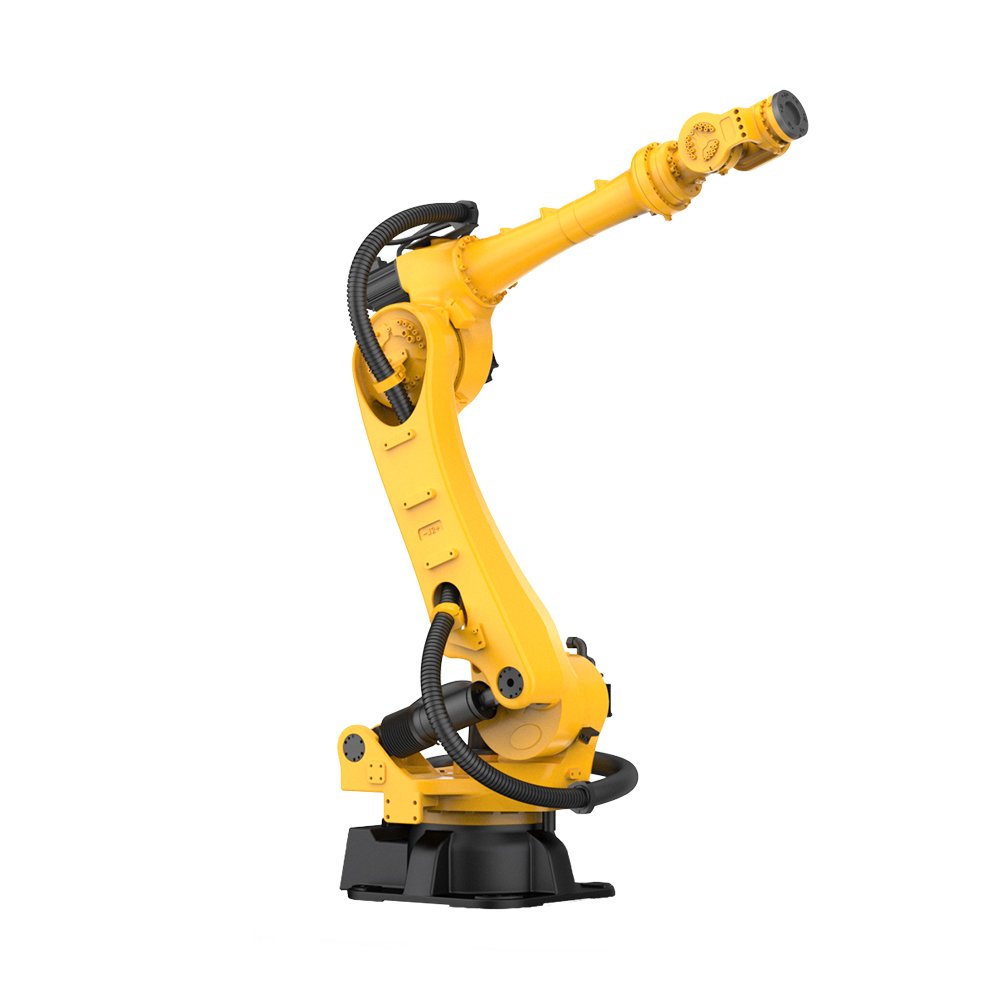

more>>  AIR165-2750 |
more>>  AIR170-2700 |

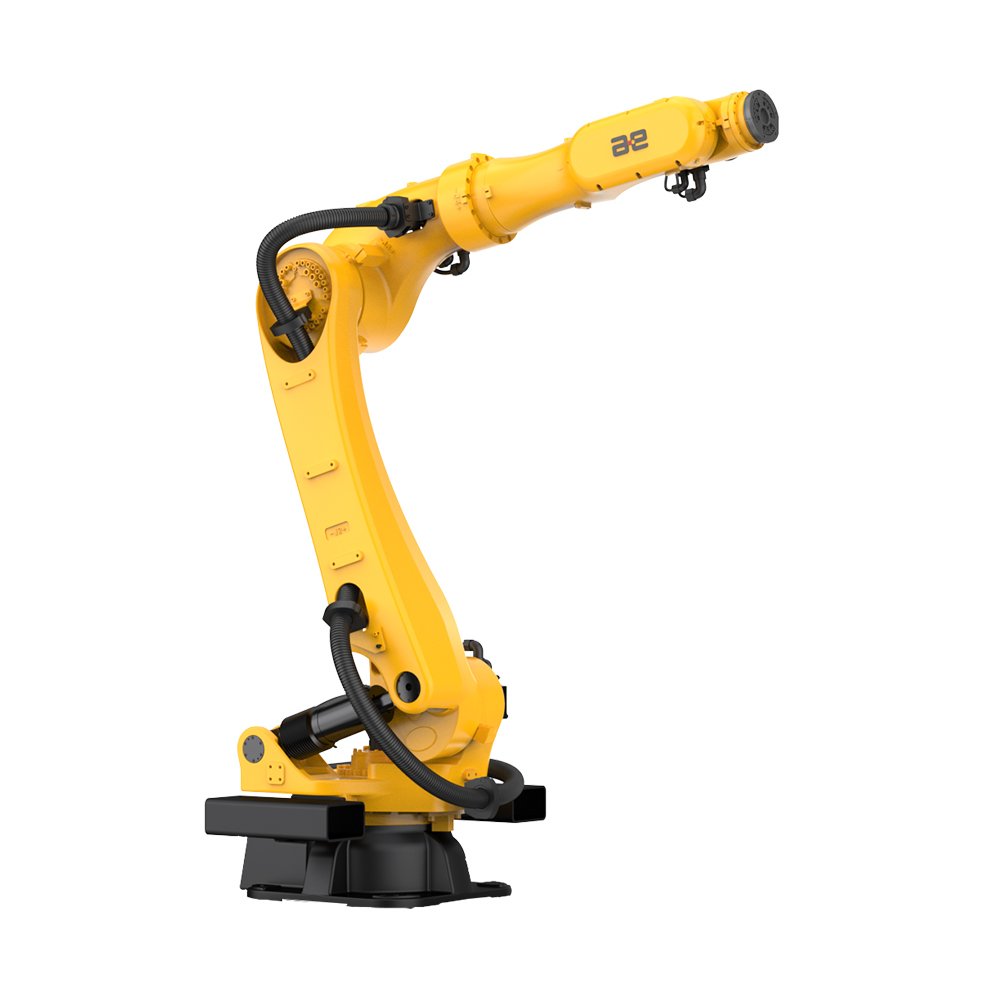

more>>  AIR170-3100 |

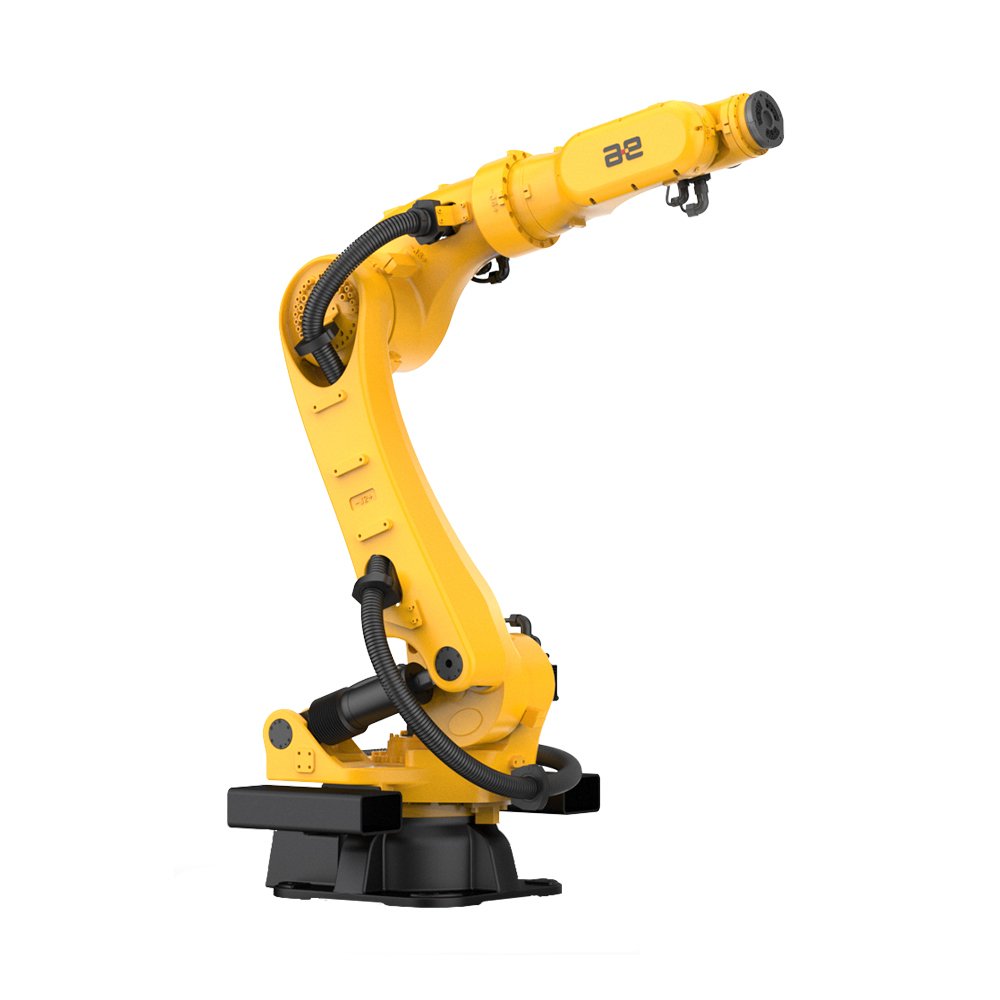

more>>  AIR220-2700 |
more>>  AIR220-3100 |
more>>  AIR280-2700-3 |
|---|---|---|---|---|---|---|---|---|
| Reach | 2707mm | 3104mm | 2750mm | 2707mm | 3104mm | 2707mm | 3104mm | 2707mm |
| Payload | 130kg | 130kg | 165kg | 170kg | 170kg | 220kg | 220kg | 280kg |
| Ingress Protection | IP54 ( Wrist：IP65 ) | IP54 ( Wrist：IP65 ) | IP54 ( Forearm：IP65 ) | IP54 ( Wrist：IP65 ) | IP54 ( Wrist：IP65 ) | IP54 ( Wrist：IP65 ) | IP54 ( Wrist：IP65 ) | IP54 ( Wrist：IP65 ) |
| Axes | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Mounting | Floor | Floor | Floor | Floor | Floor | Floor | Floor | Floor |
| PDF Download | AIR130-2700.pdf | AIR130-3100.pdf | AIR165-2750.pdf | AIR170-2700.pdf | AIR170-3100.pdf | AIR220-2700.pdf | AIR220-3100.pdf | AIR280-2700.pdf |
Food Processing
Lithium Battery
Metal Processing

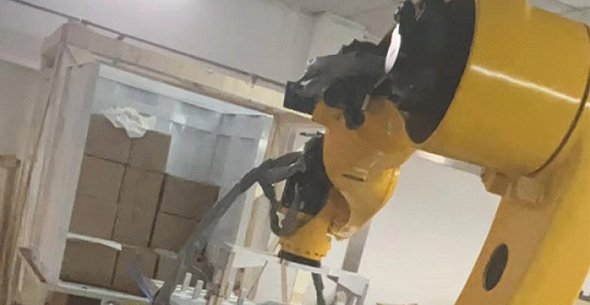

Photovoltaic
Food Processing
